Innovative Pyrolysis Technology with 20+ Years of Development
The technology enables tire recycling through pyrolysis, has been constantly developed more than 20 years, the technology is registered and protected by a patent. The complete pyrolysis reactor system is currently the 7th generation. We are calling it Continuous revolving Charge Cycle (NE-TECH CrCC®) system.

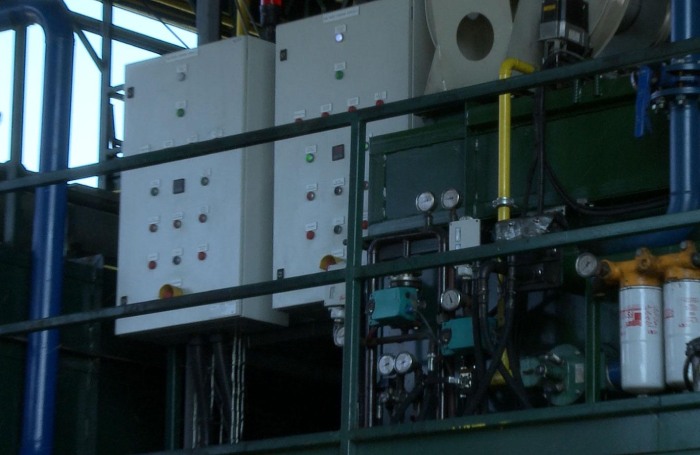

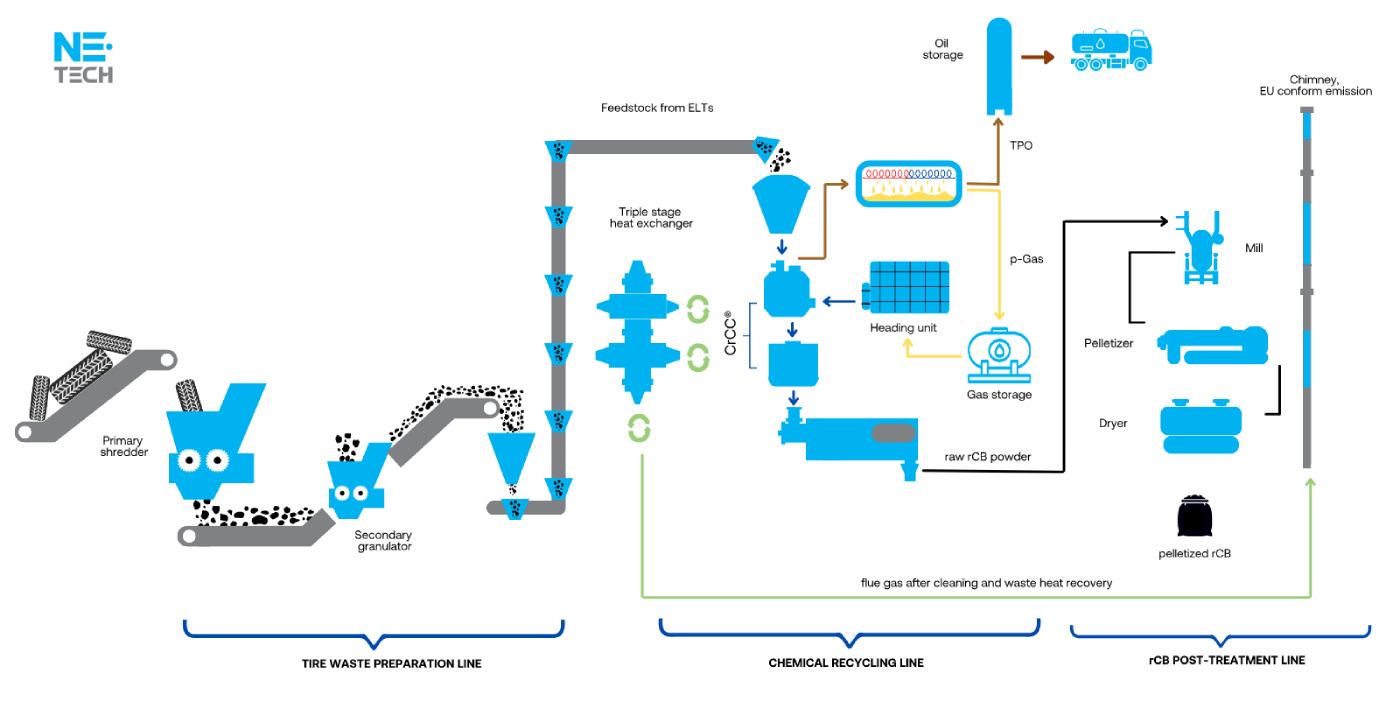

The technology is a unique combination of classical batch-type and continuous (auger-type) feeding reactors. This solution combines a great energy balance with high-quality output materials. The process take place in closed system and fully PLC controlled, prepared for automatic controlled operation. The technology has a modular design, one module’s capacity is 10.000 Mt/year and shipped with 2pcs main reactors.
Advantage of NE-TECH’s CrCC technology
- CO2 reduction: 14.000 Mt/modul/year
- Energy efficient:
- not use any fossil fuels to heat up a combustion system, it heats the reactors by the purified pyro-gas fraction
- uses the waste heat with triple stage heat-exchanger
- uses gravity for internal transport of solid and fluid materials
- Modular design:
- pre-assembled at our site, strongly reduce onsite installation time/costs at investor's facility
- facilitates installation
- allows for later capacity expansion
- provides flexibility in maintenance
- 40 feet steel frame systems
- EU-Complience emissions
- Recovered raw materials for the industry:
- TPO
- rCB
- Steel
CrCC® modul parameters
- Capacity: 10,000Mt/year ELT
- 800 - 1,200kg/hour prepared feedstock
- Upheating of the system covered by produced, cleaned process gas
- Heating: continuous
- Feeding and discharging: batch type
- Daily recycled feedstock: 24 Mt feedstock / day
- TPO production: 4,000 Mt/year
- rCB production: 3,200 Mt/year
- Built-in electricity: 395kW (average consumption during the operation 210KW)
